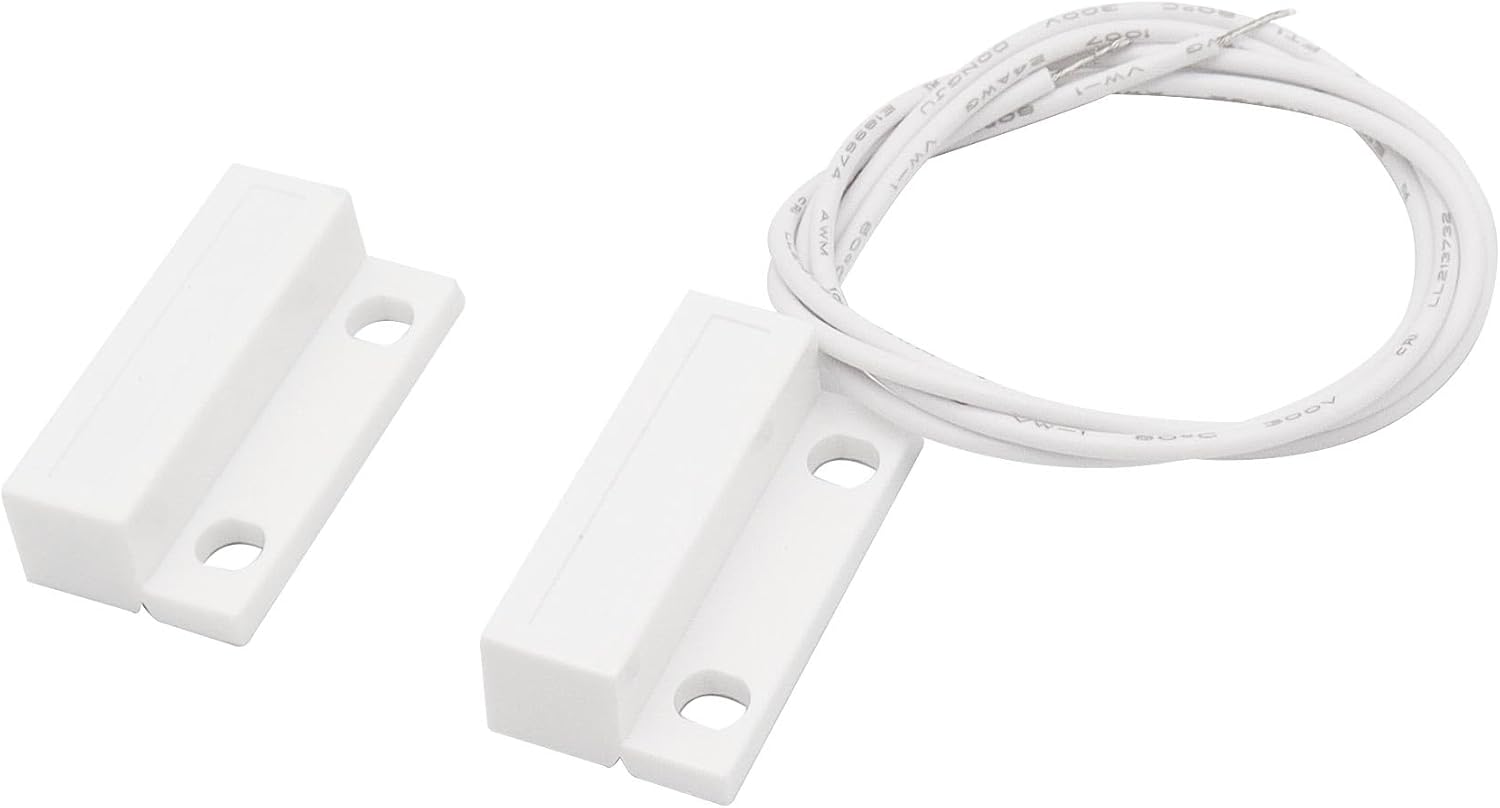

3Pcs Magnetic Reed Switch Wired Surface Mount Normally Open NO Contact Sensor Alarm Magnetic Door Switch with 2 Wires, ABS, MC-38

Overview

• Operation Mode : automatic
• Contact Type : Normally Open
• Connector Type : Screw
• Brand : FOCMKEAS
• Terminal : Spade
• Item dimensions L x W x H : 1.06 x 0.55 x 0.31 inches
• Circuit Type : 1-way
• Mounting Type : Surface Mount
• Contact Material : Metal
• Number of Positions : 3
• Switch Type Reed Switch : Material Acrylonitrile Butadiene Styrene
• : Switch Type Reed Switch
• : Material Acrylonitrile Butadiene Styrene

About this item

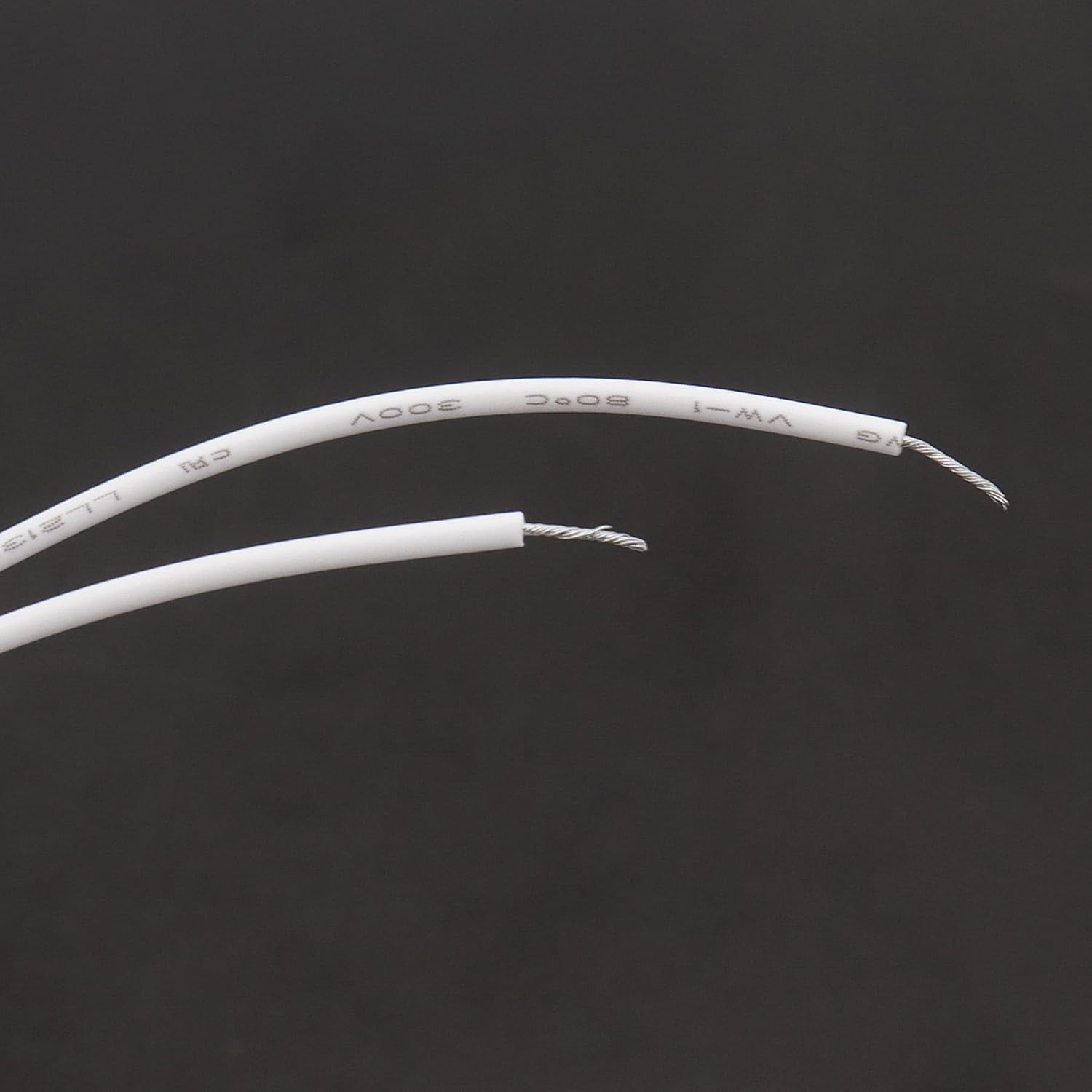

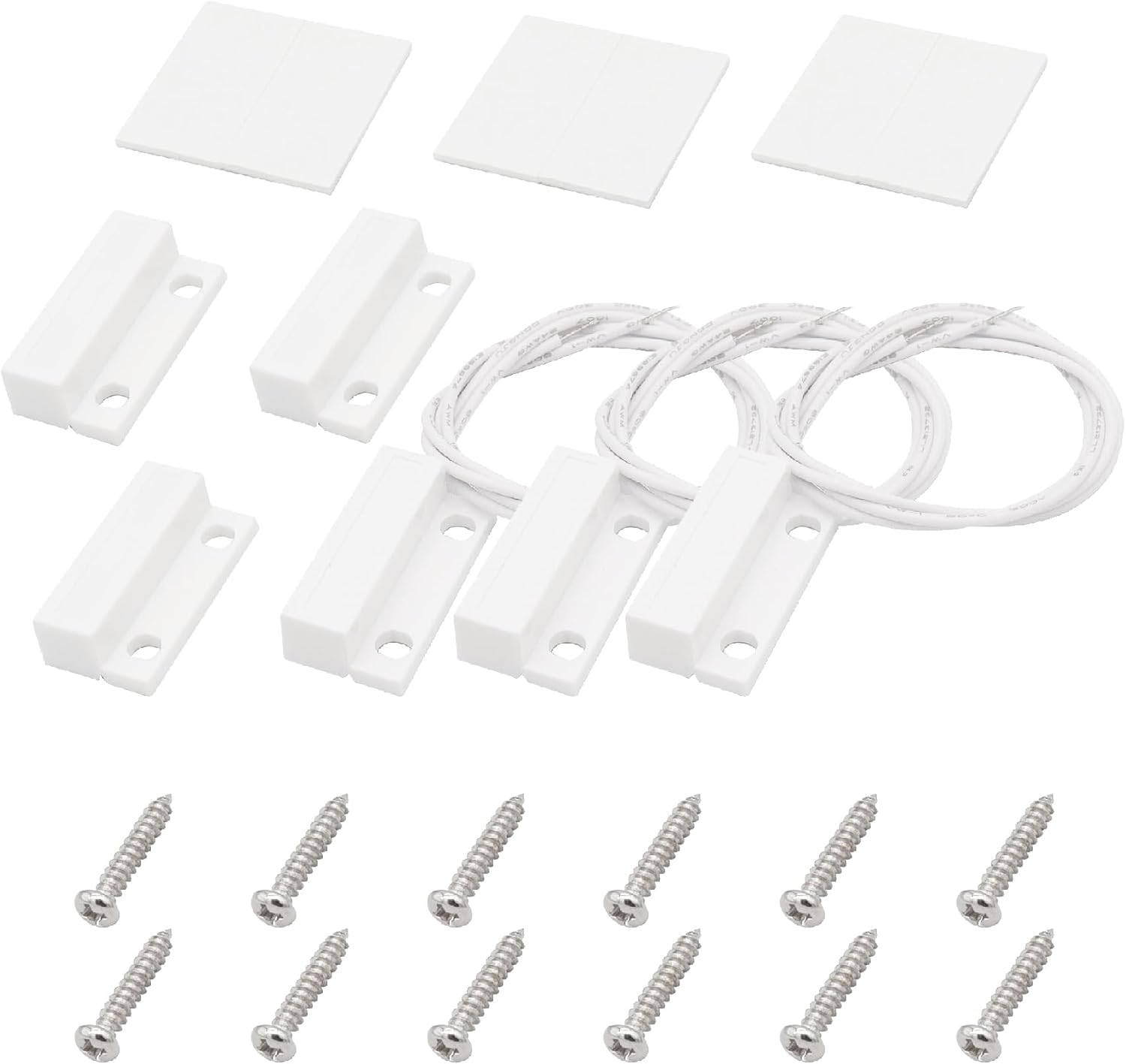

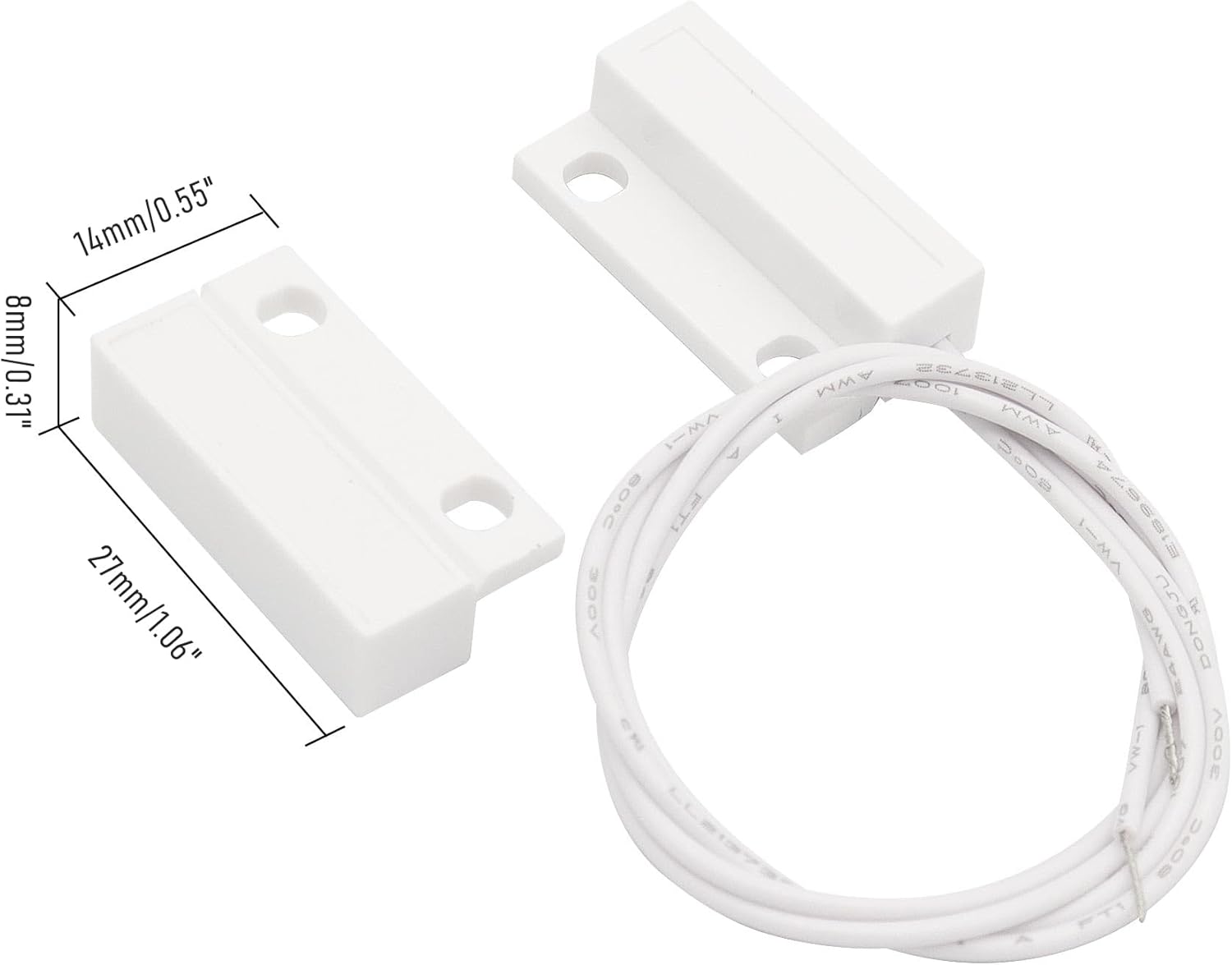

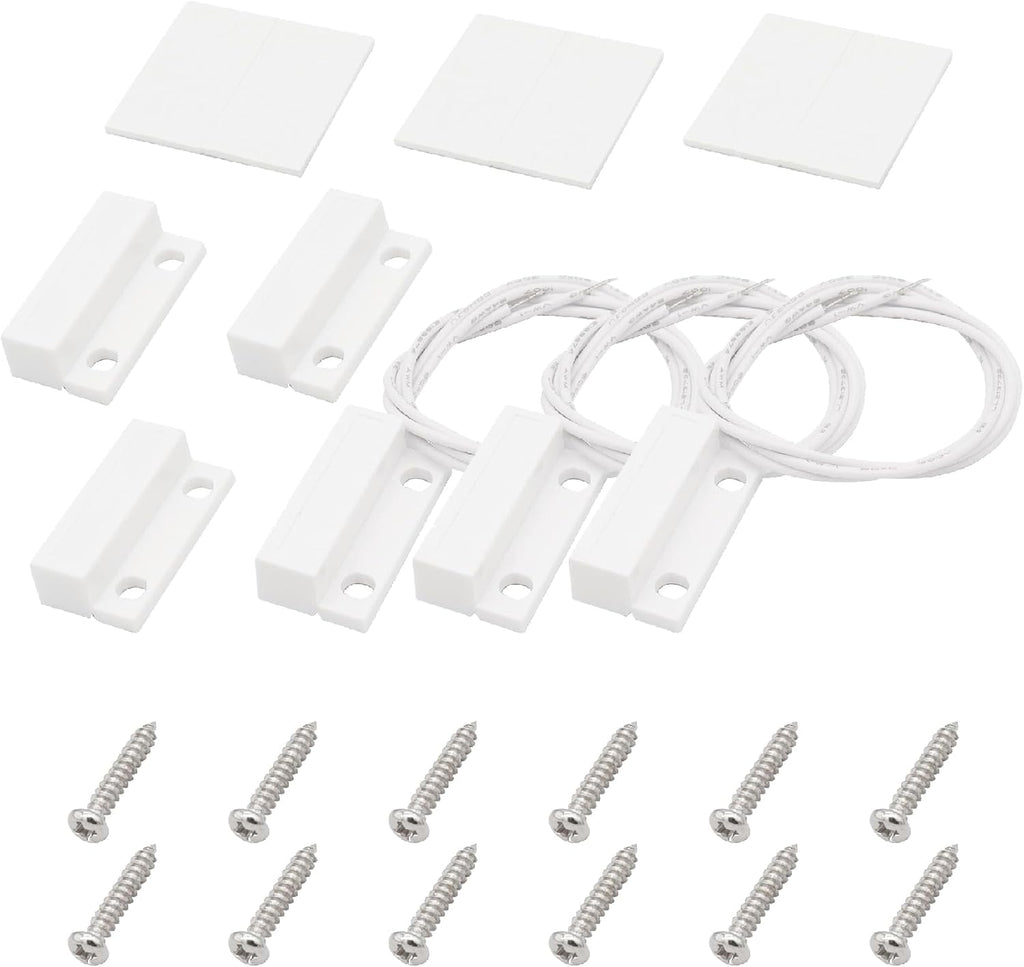

• 【Size】Body size(approx.): 27*14*8 27*14*8mm(L*W*H), Cable length: 260mm/10.2", Action Distance:15-25mm/0.6"-1", package include 3 pairs.
• 【Material】The Magnetic Switch is made of flame-retardant ABS shell material, resistant to high temperature and not easy to deform.

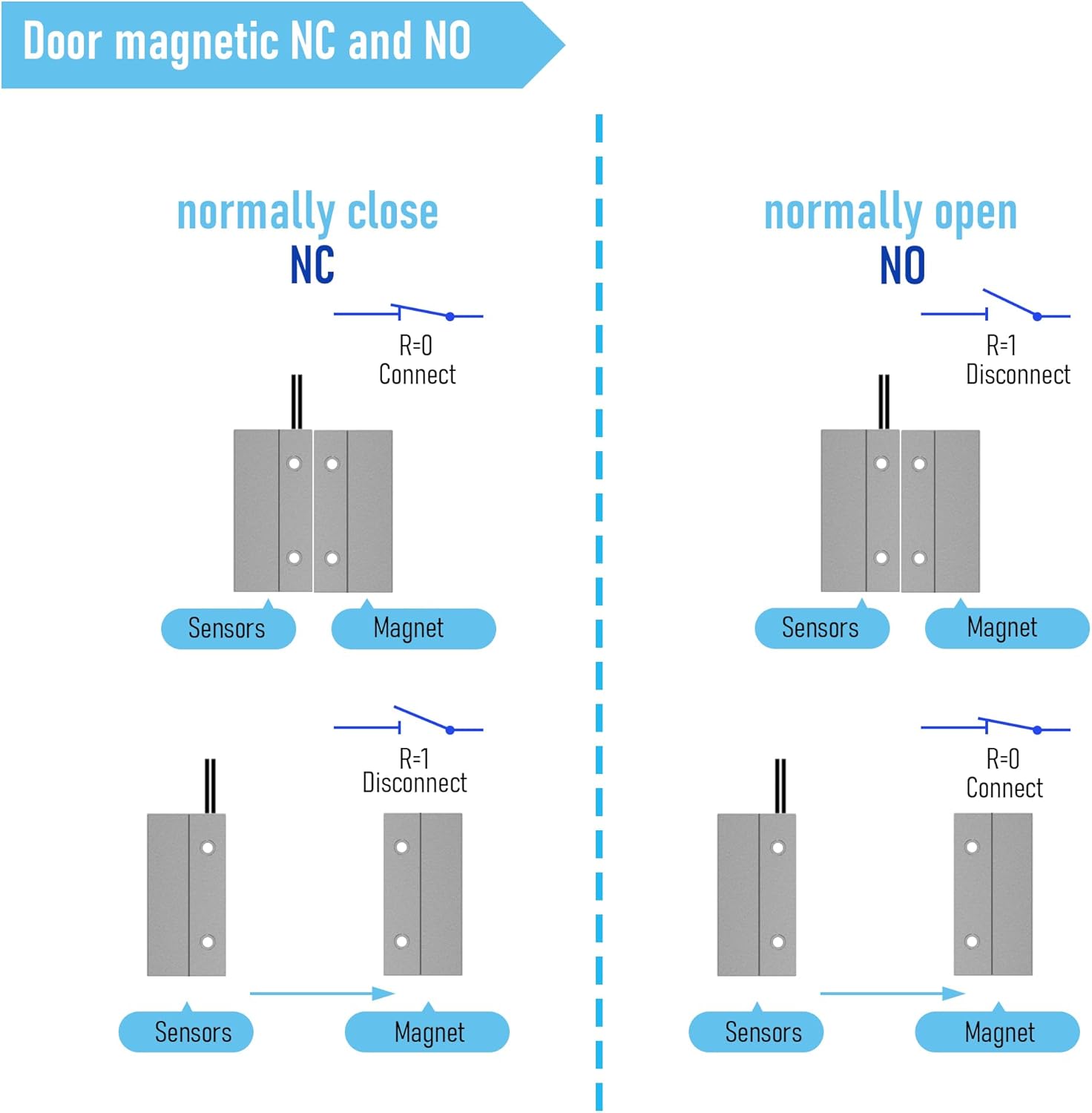

• 【Normally open (NO)】Normally Open type with 2 wires, When the switch is separated from the magnet, the circuit is conductive(light on); When the switch is close to the magnet, the circuit is not conductive(light off).
• 【Application】This magnetic contact switch is usually used for metal door/windows include rolling Door. The door contact can be used with an access control or anti-theft alarm system.
• 【Note】The Magnetic Door Switch must be installed as per the sensing distance. It can only provide a switch signal to the transmitter. It can't directly load the power, nor directly connect the lamp.
